一、彈簧全啟封閉式安全閥 產品概述
A42Y彈簧全啟封閉式安全閥適用于工作溫度≤300℃空氣、石油氣、液體等介質的設備和管路上。A42Y-P型及A42Y-R型彈簧全啟封閉式安全閥適用于工作溫度≤200℃有腐蝕性的介質的設備和管路上，作為超壓保護裝置。彈簧全啟封閉式安全閥連接法蘭標準按JB/T79-94系列的規定。
|
|
|
|---|---|---|

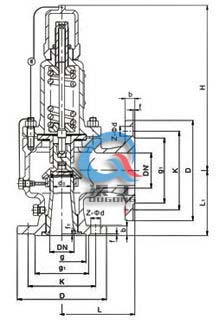

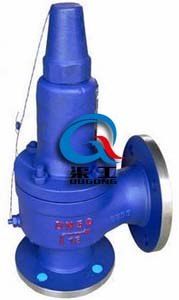

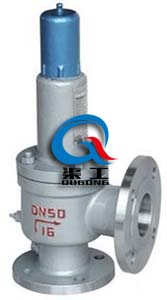

| A42Y彈簧全啟封閉式安全閥 | A42Y彈簧全啟封閉式安全閥 | 外形結構尺寸 |
二、彈簧全啟封閉式安全閥 主要零件材料
| NO | 零件名稱 | AH42F-C A42F-C 材料 |
|---|---|---|
| 1 | 閥座 | 2Cr13 |
| 2 | 閥體 | WCB |
| 3 | 調節圈 | 2Cr13 |
| 4 | 反沖盤 | 2Cr13 |
| 5 | 閥瓣 | 2Cr13+PTFE |
| 6 | 導向套 | 2Cr13 |
| 7 | 閥蓋 | ZG230-450 |
| 8 | 彈簧 | 50CrVA |
| 9 | 閥桿 | 2Cr13 |
| 10 | 調整螺桿 | 45 |
| 11 | 閥帽 | ZG200-400 |
三、彈簧全啟封閉式安全閥 連接尺寸
| 型號 | 公稱通徑 | do | D | K | g | g1 | b | f | f1 | Z-d | DN | D1 | K1 | g2 | b1 | f | Z1-d1 | L | L1 | ≈H |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A42H-16C A42F-16C |
20 | 15 | 105 | 75 | / | 55 | 16 | 2 | / | 4-14 | 25 | 115 | 85 | 65 | 16 | 2 | 4-14 | 110 | 95 | 378 |
| 25 | 16 | 115 | 85 | / | 65 | 16 | 2 | / | 4-14 | 32 | 140 | 100 | 78 | 18 | 2 | 4-18 | 110 | 95 | 378 | |
| 32 | 20 | 140 | 100 | / | 78 | 18 | 2 | / | 4-18 | 40 | 150 | 110 | 85 | 18 | 3 | 4-18 | 115 | 100 | 378 | |
| 40 | 25 | 150 | 110 | / | 85 | 18 | 3 | / | 4-18 | 50 | 165 | 125 | 100 | 20 | 3 | 4-18 | 120 | 110 | 406 | |
| 50 | 32 | 165 | 125 | / | 100 | 20 | 3 | / | 4-18 | 65 | 185 | 145 | 120 | 20 | 3 | 4-18 | 135 | 120 | 450 | |
| 65 | 40 | 185 | 145 | / | 120 | 20 | 3 | / | 4-18 | 80 | 200 | 160 | 135 | 20 | 3 | 8-18 | 160 | 140 | 520 | |
| 80 | 50 | 200 | 160 | / | 135 | 20 | 3 | / | 8-18 | 100 | 220 | 180 | 155 | 22 | 3 | 8-18 | 170 | 135 | 525 | |
| 100 | 65 | 220 | 180 | / | 155 | 22 | 3 | / | 8-18 | 125 | 250 | 210 | 185 | 22 | 3 | 8-18 | 195 | 175 | 690 | |
| 125 | 80 | 250 | 210 | / | 185 | 22 | 3 | / | 8-18 | 150 | 285 | 240 | 210 | 24 | 3 | 8-23 | 210 | 190 | 780 | |
| 150 | 100 | 285 | 240 | / | 210 | 24 | 3 | / | 8-23 | 175 | 310 | 270 | 240 | 26 | 3 | 8-23 | 255 | 230 | 838 | |
| 200 | 125 | 340 | 295 | / | 265 | 26 | 3 | / | 12-23 | 250 | 405 | 355 | 320 | 30 | 3 | 12-26 | 300 | 260 | 992 | |
| 250 | 150 | 405 | 355 | / | 320 | 30 | 3 | / | 12-26 | 300 | 460 | 410 | 375 | 30 | 4 | 12-26 | 350 | 320 | 1266 | |
| 300 | 220 | 460 | 410 | / | 375 | 30 | 4 | / | 12-26 | 400 | 580 | 525 | 485 | 36 | 4 | 16-30 | 370 | 350 | 1283 | |
| 350 | 250 | 520 | 470 | / | 435 | 34 | 4 | / | 16-26 | 500 | 715 | 650 | 608 | 44 | 4 | 20-34 | 500 | 450 | 1520 | |
| 400 | 280 | 580 | 525 | / | 485 | 36 | 4 | / | 16-30 | 500 | 715 | 650 | 608 | 44 | 4 | 20-34 | 500 | 450 | 1530 | |
|
A42H-25 A42F-25 |
20 | 15 | 105 | 75 | / | 55 | 16 | 2 | / | 4-14 | 25 | 115 | 85 | 65 | 16 | 2 | 4-14 | 110 | 95 | 378 |
| 25 | 16 | 115 | 85 | / | 65 | 16 | 2 | / | 4-14 | 32 | 140 | 100 | 78 | 18 | 2 | 4-18 | 110 | 95 | 378 | |
| 32 | 20 | 140 | 100 | / | 78 | 18 | 2 | / | 4-18 | 40 | 150 | 110 | 85 | 18 | 3 | 4-18 | 115 | 100 | 378 | |
| 40 | 25 | 150 | 110 | / | 85 | 18 | 3 | / | 4-18 | 50 | 165 | 125 | 100 | 20 | 3 | 4-18 | 120 | 110 | 406 | |
| 50 | 32 | 165 | 125 | / | 100 | 20 | 3 | / | 4-18 | 65 | 185 | 145 | 120 | 20 | 3 | 4-18 | 135 | 120 | 450 | |
| 65 | 40 | 185 | 145 | / | 120 | 22 | 3 | / | 8-18 | 80 | 200 | 160 | 135 | 20 | 3 | 8-18 | 160 | 140 | 520 | |
| 80 | 50 | 200 | 160 | / | 135 | 22 | 3 | / | 8-18 | 100 | 220 | 180 | 155 | 22 | 3 | 8-18 | 170 | 135 | 525 | |
| 100 | 65 | 230 | 190 | / | 160 | 24 | 3 | / | 8-23 | 125 | 250 | 210 | 185 | 22 | 3 | 8-18 | 195 | 175 | 690 | |
| 125 | 80 | 270 | 220 | / | 188 | 28 | 3 | / | 8-26 | 150 | 285 | 240 | 210 | 24 | 3 | 8-23 | 210 | 190 | 780 | |
| 150 | 100 | 300 | 250 | / | 218 | 30 | 3 | / | 8-26 | 175 | 310 | 270 | 240 | 26 | 3 | 8-23 | 255 | 230 | 838 | |
| 200 | 125 | 360 | 310 | / | 278 | 34 | 3 | / | 12-26 | 250 | 405 | 355 | 320 | 30 | 3 | 12-26 | 300 | 260 | 992 | |
| 250 | 150 | 425 | 370 | / | 332 | 36 | 3 | / | 12-30 | 300 | 460 | 410 | 375 | 30 | 4 | 12-26 | 350 | 320 | 1266 | |
| 300 | 220 | 485 | 430 | / | 390 | 40 | 4 | / | 16-30 | 400 | 580 | 525 | 485 | 36 | 4 | 16-30 | 370 | 350 | 1283 | |
|
A42H-40 A42F-40 |
20 | 15 | 105 | 25 | 51 | 55 | 16 | 2 | 4 | 4-14 | 25 | 115 | 85 | 65 | 16 | 2 | 4-14 | 110 | 95 | 378 |
| 25 | 16 | 115 | 85 | 58 | 65 | 16 | 2 | 4 | 4-14 | 32 | 140 | 100 | 78 | 18 | 2 | 4-18 | 110 | 95 | 378 | |
| 32 | 20 | 140 | 100 | 66 | 78 | 18 | 2 | 4 | 4-18 | 40 | 150 | 110 | 85 | 18 | 3 | 4-18 | 115 | 100 | 378 | |
| 40 | 25 | 150 | 110 | 76 | 85 | 18 | 3 | 4 | 4-18 | 50 | 165 | 125 | 100 | 20 | 3 | 4-18 | 120 | 110 | 406 | |
| 50 | 32 | 165 | 125 | 88 | 100 | 20 | 3 | 4 | 4-18 | 65 | 185 | 145 | 120 | 20 | 3 | 4-18 | 135 | 120 | 450 | |
| 65 | 40 | 185 | 145 | 110 | 120 | 22 | 3 | 4 | 8-18 | 80 | 200 | 160 | 135 | 20 | 3 | 8-18 | 160 | 140 | 520 | |
| 80 | 50 | 200 | 160 | 121 | 135 | 22 | 3 | 4 | 8-18 | 100 | 220 | 180 | 155 | 22 | 3 | 8-18 | 170 | 135 | 525 | |
| 100 | 65 | 235 | 190 | 150 | 160 | 24 | 3 | 4.5 | 8-23 | 125 | 250 | 210 | 185 | 22 | 3 | 8-18 | 195 | 175 | 690 | |
| 125 | 80 | 270 | 220 | 176 | 188 | 28 | 3 | 4.5 | 8-26 | 150 | 285 | 240 | 210 | 24 | 3 | 8-23 | 210 | 190 | 780 | |
| 150 | 100 | 300 | 250 | 204 | 218 | 30 | 3 | 4.5 | 8-26 | 175 | 310 | 270 | 240 | 26 | 3 | 8-23 | 255 | 230 | / |
四、彈簧全啟封閉式安全閥 訂貨須知
訂貨時請?zhí)顚?xiě)《規格書》或注明以下內容：
1、若訂貨前未選定型號，請向我們提供使用參數:1.公稱通徑，2.流體性質（包括公稱壓力、溫度、粘度或酸堿性），3.閥體、閥芯材料。
2、若已經由設計單位選定我公司的彈簧全啟封閉式安全閥產品型號，請按型號直接向我司訂購；
